TIME: 3 HOURS
I put the AST hinges on the rear of the HS. Surprisingly, almost all of the holes I drilled in the hinge using the hinge-drilling-template lined up exactly. I found that I had to debur and sand the template just a little in order for it to for in snap in between the eyelets of the hinge. Its a nice simple and low-cost way to drill holes in hinges. There were a few holes which I couldn't insert the rivets into -- and that's probably do to a little primer inside the hole.
For instance, while I was placing rivets in every other hole.. there would just be a few random ones which wouldn't go in (at least not without some force). I cleaned out the hole with a #30 and they slid right in. Cleco every other hole, rivet, remove cleco, rivet remaining holes.

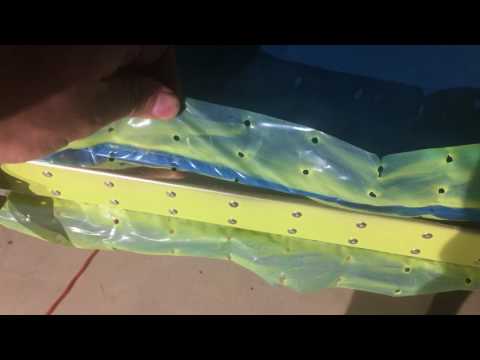

The rear-skin splice was match-drilled with #53's. These are really tiny holes, I think its for safety-wire in order to hold the hinge pins in place. ERROR: When I match drilled the #53 holes into the rear-skin, the splice plate was upside down. So I have two tiny holes in the skin which don't go all the way through [the splice plate]. Seems like this is my first permanent error. Oops.
The counter-balance arm, lead weights and rear skins of the HS (i'm not sure what to call them) will be for tomorrow.
I put the AST hinges on the rear of the HS. Surprisingly, almost all of the holes I drilled in the hinge using the hinge-drilling-template lined up exactly. I found that I had to debur and sand the template just a little in order for it to for in snap in between the eyelets of the hinge. Its a nice simple and low-cost way to drill holes in hinges. There were a few holes which I couldn't insert the rivets into -- and that's probably do to a little primer inside the hole.
For instance, while I was placing rivets in every other hole.. there would just be a few random ones which wouldn't go in (at least not without some force). I cleaned out the hole with a #30 and they slid right in. Cleco every other hole, rivet, remove cleco, rivet remaining holes.
The rear-skin splice was match-drilled with #53's. These are really tiny holes, I think its for safety-wire in order to hold the hinge pins in place. ERROR: When I match drilled the #53 holes into the rear-skin, the splice plate was upside down. So I have two tiny holes in the skin which don't go all the way through [the splice plate]. Seems like this is my first permanent error. Oops.
The counter-balance arm, lead weights and rear skins of the HS (i'm not sure what to call them) will be for tomorrow.
